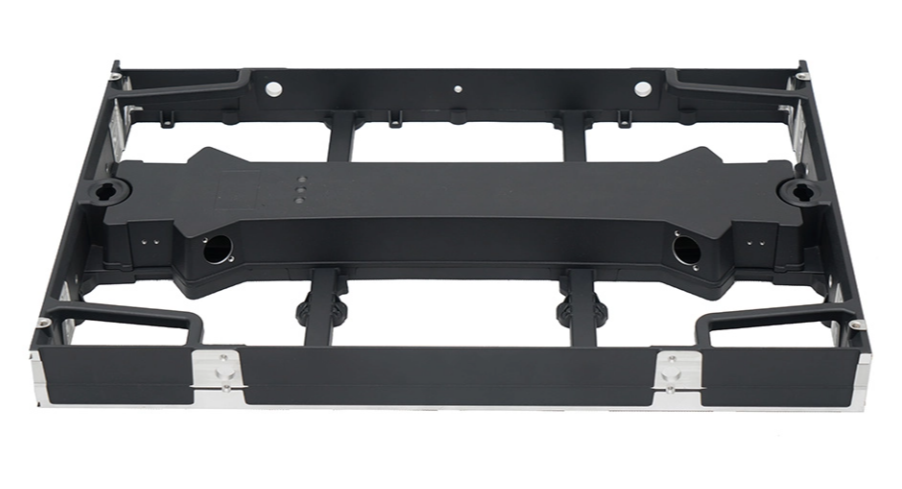

The VX Precision Skeleton Box serves as a lightweight structural framing solution for automotive and professional display electronics. Manufactured via advanced die casting technology in an IATF 16949 certified production facility, this skeletal design achieves a 40% weight reduction compared to solid enclosures, while retaining equivalent structural strength. Our engineering team collaborates with automotive Tier 1 suppliers to refine designs for ADAS systems, infotainment displays, and instrument clusters, adapting the product to specific application and functional requirements.
The VX Skeleton Box is produced through die-casting technology, a process that injects molten metal into precision molds to form components with complex geometries and tight dimensional tolerances. This high-pressure molding method supports consistent mass production with long mold life, and enables the skeletal structural design that balances reduced weight and structural performance. The resulting structure adapts to various electronic assembly workflows, supporting both prototype testing and large-scale production.
The skeleton box is manufactured using aluminum, zinc, or magnesium alloys, each suited for different operational priorities. These material options support varied performance characteristics, from thermal conductivity to corrosion resistance, allowing alignment with specific application environments and functional demands.
The product features pre-drilled mounting holes and a modular design, which simplifies assembly and installation processes. This design reduces production time and associated labor costs for commercial procurement and manufacturing workflows, supporting smooth integration into existing production and assembly systems.
Engineered for dynamic operating environments, the VX Skeleton Box includes vibration-resistant properties that reduce vibration impact on internal components, suitable for automotive systems and industrial machinery. The enclosure carries an IP65 protection rating for dustproof and water-resistant performance, and resists UV exposure, corrosion, and extreme weather conditions for use across diverse outdoor and industrial settings. It is also designed to withstand high-impact conditions during operation and transport.
Constructed with materials that support high thermal dissipation capacity, the skeleton box transfers heat away from internal electronics, supporting stable operation of sensitive components. It also provides electromagnetic interference (EMI) shielding to protect internal electronic parts from external signal interference in dense device environments.
Multiple surface treatment options are available, including powder coating, anodizing, and electroplating. Custom color options with matte or gloss finishes are also provided, allowing alignment with product appearance requirements while maintaining surface durability across long-term use.
Feature | Description |
Material Composition | Aluminum, Zinc, Magnesium Alloys |
Surface Treatment | Powder Coating, Anodizing, Electroplating |
Protection Rating | IP65 (Dustproof and Water-resistant) |
Manufacturing Process | Precision Die-Casting with High-Pressure Molding |
Assembly Options | Pre-drilled Mounting Holes for Easy Integration |
Impact Resistance | Designed to withstand high-impact conditions |
Vibration Resistance | Engineered for high-vibration environments |
Weight | Lightweight design for easy handling and transport |
Dimensions | Customizable based on application requirements |
Thermal Conductivity | High thermal dissipation capacity to protect electronics |
Environmental Compatibility | Resistant to UV, corrosion, and extreme weather |
Electromagnetic Interference (EMI) Shielding | Provides EMI shielding to protect sensitive electronics |
Mounting Features | Modular design with customizable mounting options |
Mold Longevity | Long mold life for efficient mass production |
Color and Finish Options | Available in custom colors with a choice of matte or gloss finishes |
The VX Skeleton Box is adapted for use across automotive and professional display electronics. In automotive systems, it serves as structural framing for ADAS components, infotainment displays, and instrument clusters, where weight reduction and vibration resistance support reliable long-term vehicle operation. It also applies to high-performance electronic device enclosures in industrial settings, where thermal management and EMI protection support consistent equipment performance. Custom dimension options allow the product to fit specific design and functional requirements across different use cases.
Die-casting supports high-precision manufacturing of complex shapes, enabling the VX Skeleton Box to combine low weight with structural strength. The process also produces consistent surface finishes, and supports impact and corrosion resistance properties that deliver long-term protection for sensitive internal components.
The VX Skeleton Box is constructed with materials that support high thermal conductivity, facilitating efficient heat dissipation. This helps internal electronic components operate within their optimal temperature range, even in environments with potential heat buildup during continuous operation.
Yes. The VX Skeleton Box is designed for simplified installation and integration. With pre-drilled mounting holes and a modular structure, it can be assembled and integrated into existing systems quickly, reducing time and labor costs during setup and production deployment.
Our streamlined production processes support consistent delivery timelines for enterprise customers. We maintain proactive communication throughout the order cycle, from initial design adjustments to mass production stages. The long mold life of the die-casting tooling supports efficient volume production, helping buyers meet project schedules while maintaining consistent product performance.
